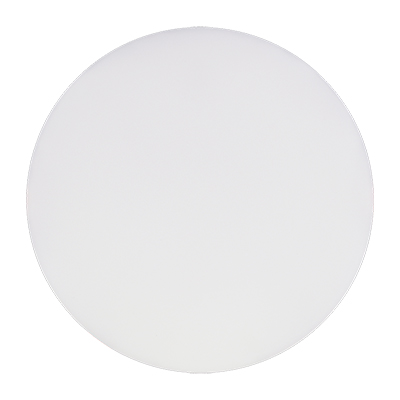

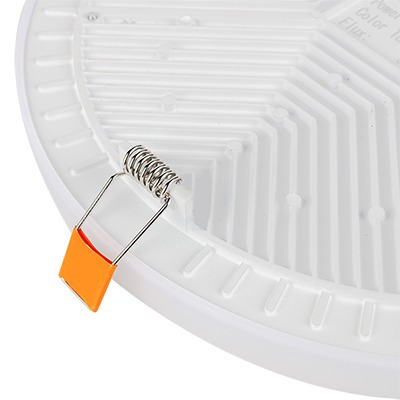

FRAMELESS PANEL LIGHT ROUND TYPE

B29770-Frameless Panel Light 6W·10W·15W·22W

Round recessed model

Die cast aluminum housing

Excellent heat sink

PS diffuser minimal glare

High efficiency constant current driver

ROUND FRAMELESS PANEL LIGHT 6W 10W 15W 22W













POWER
VOLT
LUMENS
EEL
ANGLE
PF
RA
CCT
DIM
IP
Class Ⅱ
ΦxH
LIFE
6W 120V/230V 480Lm A+ 120° 0.5 >80 3000K/4000K/6500K NON-DIM IP20 II 90x19mm 25,000H
10W 120V/230V 800Lm A+ 120° 0.5 >80 3000K/4000K/6500K NON-DIM IP20 II 120x19mm 25,000H
15W 120V/230V 1200Lm A+ 120° 0.5 >80 3000K/4000K/6500K NON-DIM IP20 II 170x19mm 25,000H
22W 120V/230V 1760Lm A+ 120° 0.5 >80 3000K/4000K/6500K NON-DIM IP20 II 225x19mm 25,000H
