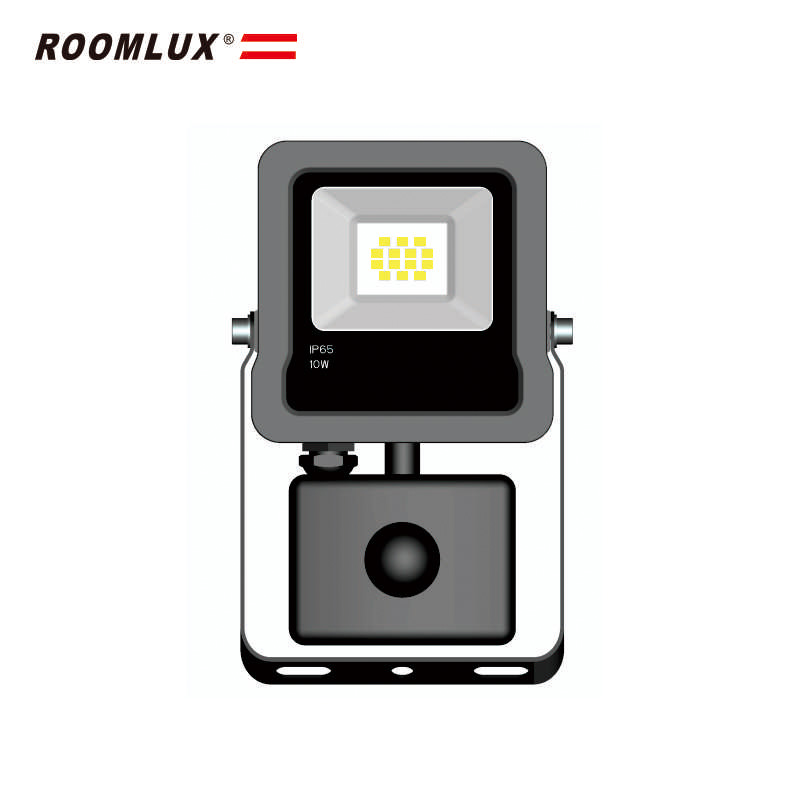

LED FLOODLIGHT SKYSTAR SERIE
B43763-Super slim 10-50W 120°
Aluminium reflector
2835 SMD LED
Exellent heat sink
Tempered white glass light
Die-cast aluminum (ADC12#) body
Inclined bracket, easier for installation
120° beam angle, 80Lm/W, Linear driver, 10W/20W surge>1000V, 30W above surge>2000V
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
POWER |
VOLT |
LUMENS |
EEL |
ANGLE |
PF |
RA |
CCT |
DIM |
IP |
Class I |
LxWxH |
LIFE |
| 10W | 120V/230V | 800Lm | A+ | 120° | 0.9 | >80 | 3000K/4000K/6500K | NON-DIM | IP44 | I | 101x154x54mm | 25,000H |
| 20W | 120V/230V | 1600Lm | A+ | 120° | 0.9 | >80 | 3000K/4000K/6500K | NON-DIM | IP44 | I | 129x165x57mm | 25,000H |
| 30W | 120V/230V | 2400Lm | A+ | 120° | 0.9 | >80 | 3000K/4000K/6500K | NON-DIM | IP44 | I | 163x212x61mm | 25,000H |
| 50W | 120V/230V | 4000Lm | A+ | 120° | 0.9 | >80 | 3000K/4000K/6500K | NON-DIM | IP44 | I | 193x257x63mm | 25,000H |
