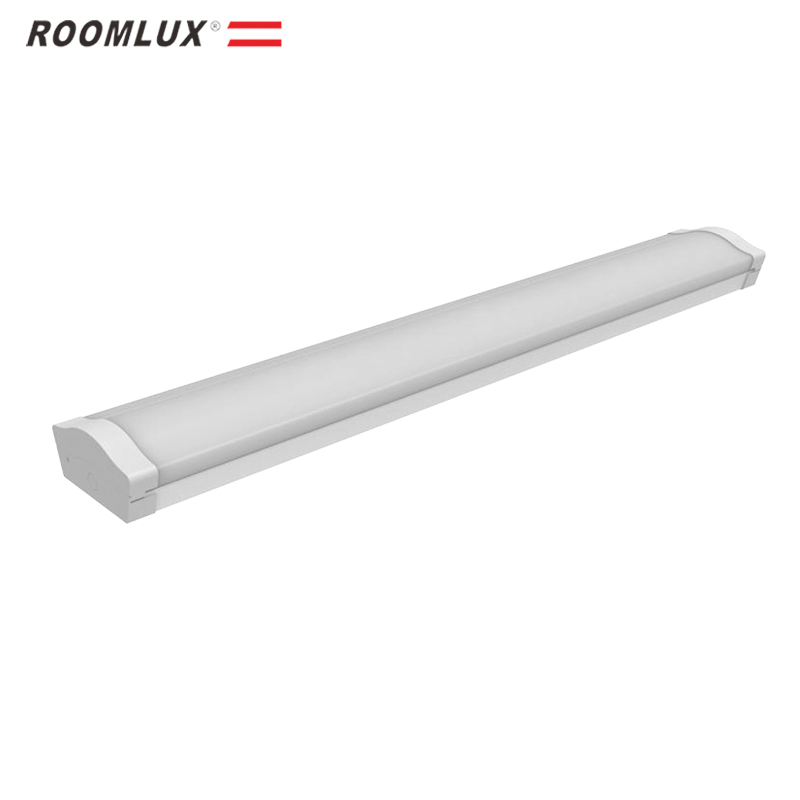

LED BATTEN LIGHT IP20
B28325 1.2M/20W 40W 1.5M/40W 60W 1.8M/60W 70W
High efficiency constant current driver
Function: on-off microwave sesor/dimmable sensor/1-10V dimmable/ DALI /emergency/through wiring
Installation: Surface mounting/suspending
Use terminal design to be easy assemble and maintenance

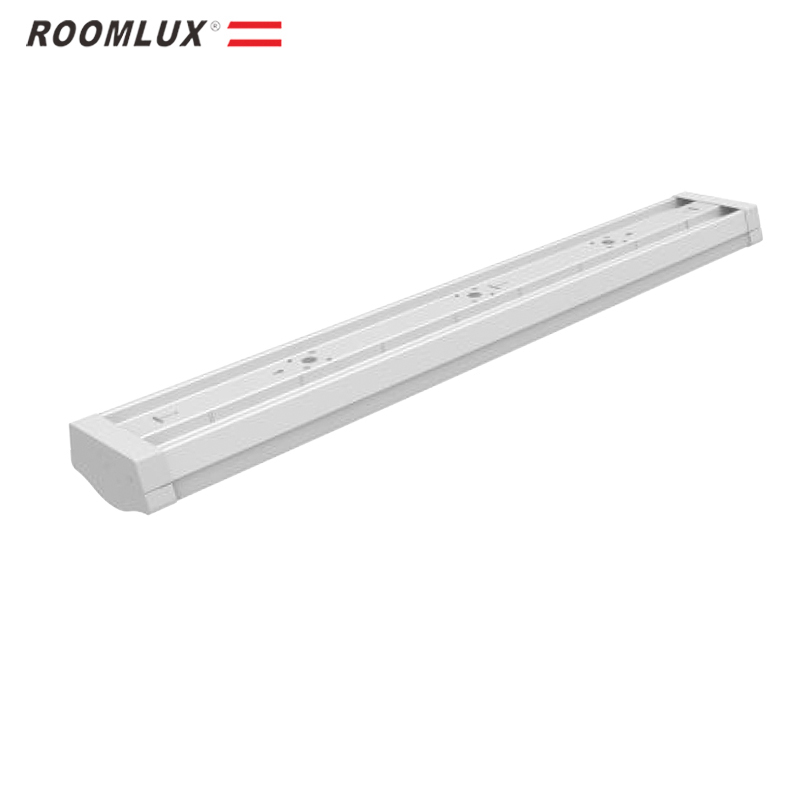

Snap fit hidden design, mounting holes design
High quality PC cover, anti-glare coatingand eye-protect with soft light
Applications: Office, meeting room, supermarket, stores, home furnishing lighting
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
POWER |
VOLT |
LUMENS |
EEL |
ANGLE |
PF |
RA |
CCT |
DIM |
IP |
Class I |
LxWxH |
LIFE |
| 1.2M-20W | 120V/230V | 2400Lm | A+ | 120° | 0.9 | >80 | 3000K/4000K/6500K | NON-DIM | IP65 | II | 1200X180X85mm | 25,000H |
| 1.2M/1.5M-40W | 120V/230V | 4800Lm | A+ | 120° | 0.9 | >80 | 3000K/4000K/6500K | NON-DIM | IP65 | II | 1200/1500X144X75mm | 25,000H |
| 1.5M/1.8M-60W | 120V/230V | 7200Lm | A+ | 120° | 0.9 | >80 | 3000K/4000K/6500K | NON-DIM | IP65 | II | 1500/1800X144X75mm | 25,000H |
|
1.8M-70W |
120V/230V | 9000Lm | A+ | 120° | 0.9 | >80 | 3000K/4000K/6500K | NON-DIM | IP65 | II |
1800X144X75mm |
25,000H |
