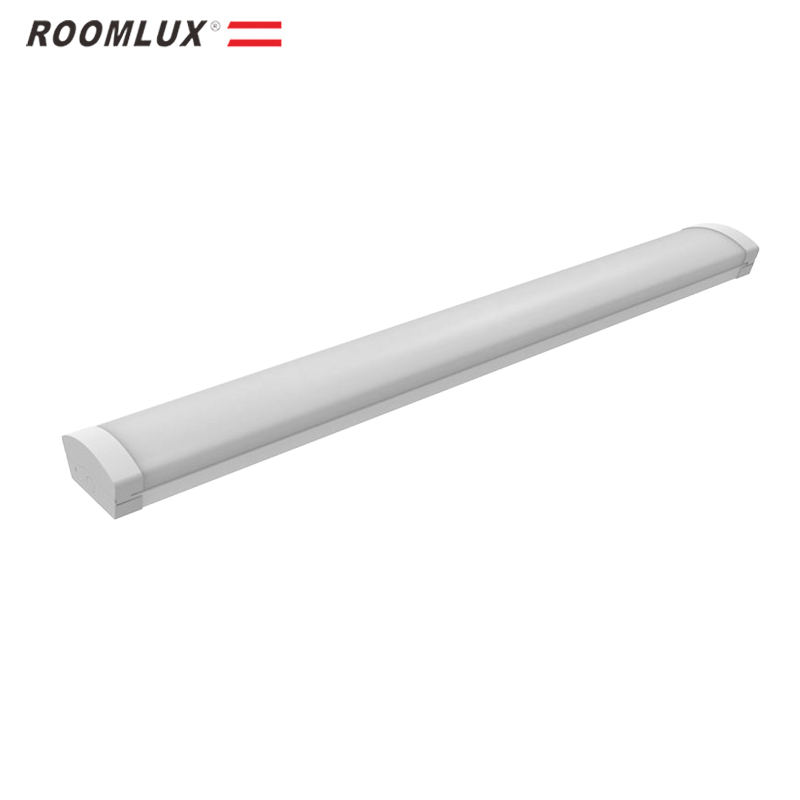

LED BATTEN LIGHT IP20

B28320   1.2M/20W 40W  1.5M/30W 60W  1.8M/50W 76W


High efficiency constant current driver

Function: on-off microwave sesor/dimmable sensor/1-10V dimmable/ DALI /emergency/through wiring

Installation: Surface mounting/suspending


Use terminal design to be easy assemble and maintenance

Snap fit hidden design, mounting holes design

High quality PC cover, anti-glare coatingand eye-protect with soft light

Applications: Office, meeting room, supermarket, stores, home furnishing lighting



LED BATTEN LIGHT 1.2M 1.5M 1.8M













POWER
VOLT
LUMENS
EEL
ANGLE
PF
RA
CCT
DIM
IP
Class I
LxWxH
LIFE
1.2M-20W 120V/230V 2400Lm A+ 120° 0.9 >80 3000K/4000K/6500K NON-DIM IP65 II 1200X144X75mm 25,000H
1.2M-40W 120V/230V 4800Lm A+ 120° 0.9 >80 3000K/4000K/6500K NON-DIM IP65 II 1200X144X75mm 25,000H
1.5M-30W 120V/230V 3600Lm A+ 120° 0.9 >80 3000K/4000K/6500K NON-DIM IP65 II 1500X144X75mm 25,000H
1.5M-60W 120V/230V 7200Lm A+ 120° 0.9 >80 3000K/4000K/6500K NON-DIM IP65 II 1500X144X75mm 25,000H
1.8M-50W 120V/230V 6000Lm A+ 120° 0.9 >80 3000K/4000K/6500K NON-DIM IP65 II 1800X144X75mm 25,000H

1.8M-76W

120V/230V 91200Lm A+ 120° 0.9 >80 3000K/4000K/6500K NON-DIM IP65 II 1800X144X75mm
25,000H
