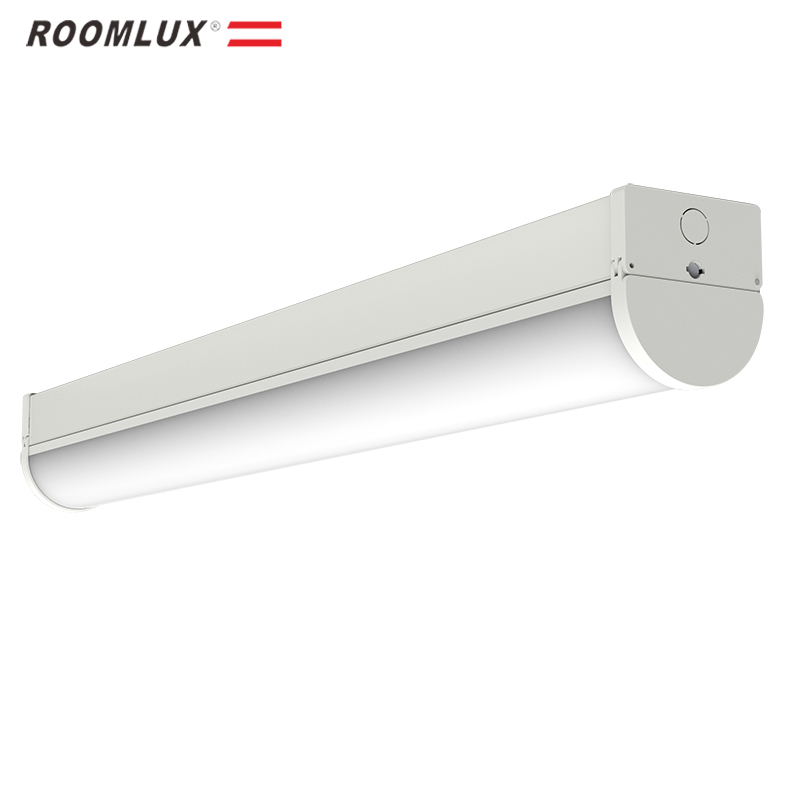

LED BATTEN LIGHT IP65 IK08
B28310 0.6M/10W 20W 1.2M/24W 40W 1.5M/30W 60W 70W 1.8M/50W 70W

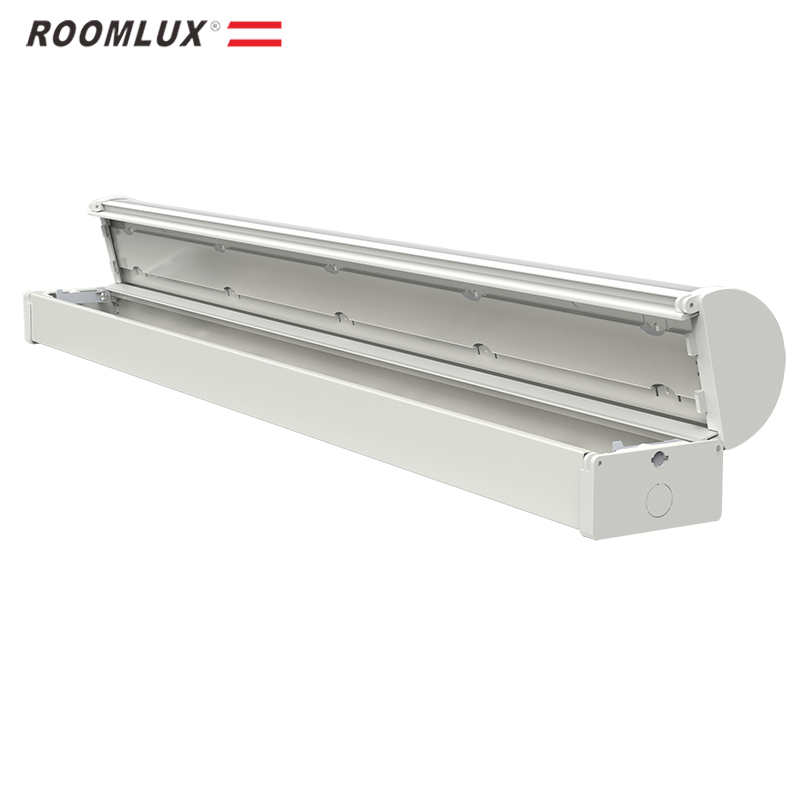

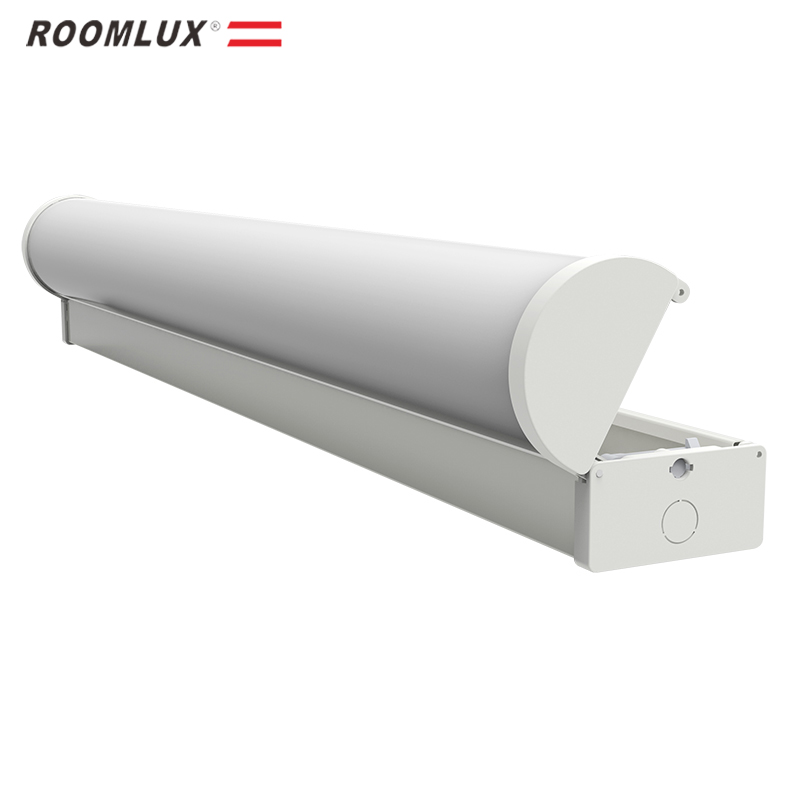

PC Cover Openable Convenient Wiring
High efficiency constant current driver
Use terminal design to be easy assemble and maintenance
Snap fit hidden design, mounting holes design
High quality PC cover, anti-glare coatingand eye-protect with soft light
Applications: Office, meeting room, supermarket, stores, home furnishing lighting
 |
|
 |
 |
 |
 |
 |
|
 |
 |
|
|
 |
|
POWER |
VOLT |
LUMENS |
EEL |
ANGLE |
PF |
RA |
CCT |
DIM |
IP |
Class Ⅱ |
LxWxH |
LIFE |
| 0.6M-10W | 120V/230V | 1300Lm | A+ | 120° | 0.9 | >80 | 3000K/4000K/6500K | NON-DIM | IP65 | I | 570x62x70mm | 25,000H |
| 0.6M-20W | 120V/230V | 2600Lm | A+ | 120° | 0.9 | >80 | 3000K/4000K/6500K | NON-DIM | IP65 | I | 570x62x70mm | 25,000H |
| 1.2M-24W | 120V/230V | 3120Lm | A+ | 120° | 0.9 | >80 | 3000K/4000K/6500K | NON-DIM | IP65 | I | 1170x62x70mm | 25,000H |
| 1.2M-40W | 120V/230V | 5200Lm | A+ | 120° | 0.9 | >80 | 3000K/4000K/6500K | NON-DIM | IP65 | I | 1170x62x70mm | 25,000H |
| 1.5M-30W | 120V/230V | 3900Lm | A+ | 120° | 0.9 | >80 | 3000K/4000K/6500K | NON-DIM | IP65 | I | 1470x62x70mm | 25,000H |
| 1.5M-60W | 120V/230V | 7800Lm | A+ | 120° | 0.9 | >80 | 3000K/4000K/6500K | NON-DIM | IP65 | I | 1470x62x70mm | 25,000H |
| 1.5M-70W | 120V/230V | 9100Lm | A+ | 120° | 0.9 | >80 | 3000K/4000K/6500K | NON-DIM | IP65 | I | 1470x62x70mm | 25,000H |
| 1.8M-50W | 120V/230V | 6500Lm | A+ | 120° | 0.9 | >80 | 3000K/4000K/6500K | NON-DIM | IP65 | I | 1770x62x70mm | 25,000H |
| 1.8M-70W | 120V/230V | 9750Lm | A+ | 120° | 0.9 | >80 | 3000K/4000K/6500K | NON-DIM | IP65 | I | 1770x62x70mm | 25,000H |
